ACF411A35-F1-Three-phase Four-wire Filter-Industrial Control Filter-Products-Changzhou Feishuo Electronics Co., Ltd

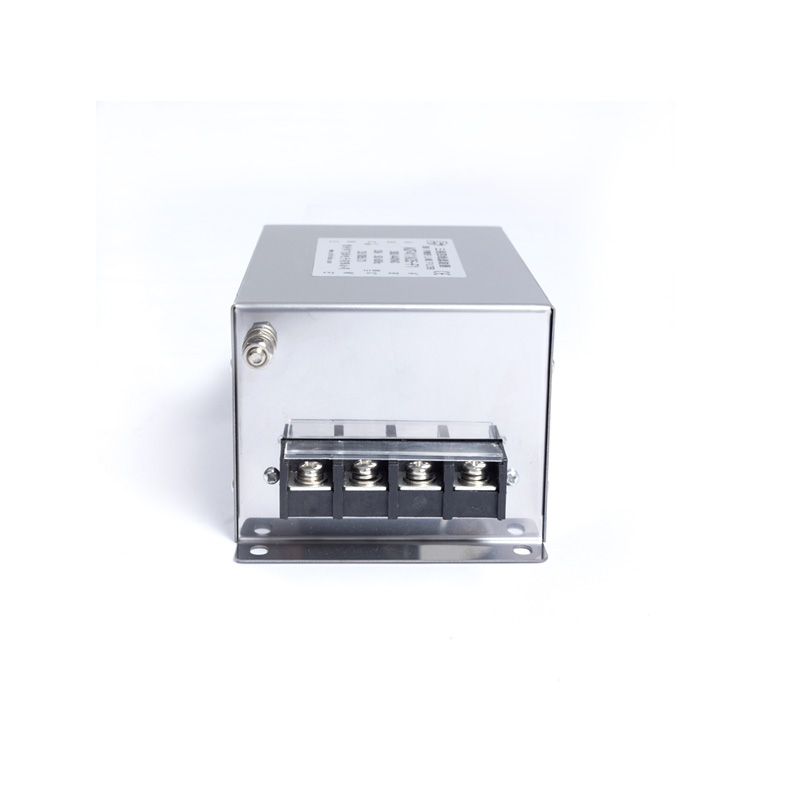

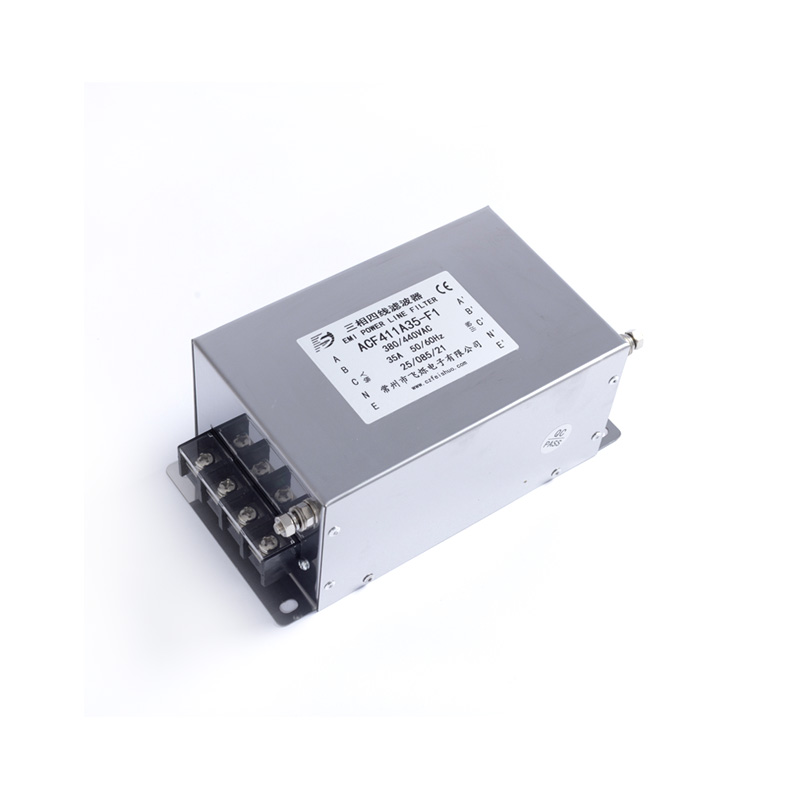

Basic Parameters

① Rated Voltage: 380/440VAC

② Operating Frequency: 50/60Hz

③ Climate Class: 25/85/21

④ Withstand Voltage: L-N: 1500VDC / L-E: 2250VDC

⑤ Rated Current: 5~1600A

⑥ Design Standards: GB 15288, GB 15287-2008, UL1283, IEC/EN 60939

Typical Applications

Energy storage, semiconductors, UPS, switching power supplies, communication equipment, servo motors, frequency converters, variable frequency power supplies, automated electronic devices, three-phase motors, wind power and solar power inverter systems, inverters, air conditioners, water cooling systems, elevators, power supply systems and injection molding machines.

Circuit Structure Drawing

① General-purpose Three-phase Four-wire Filter

② High-performance Three-phase Four-wire Filter

Naming Convention for Three-phase Four-wire Products

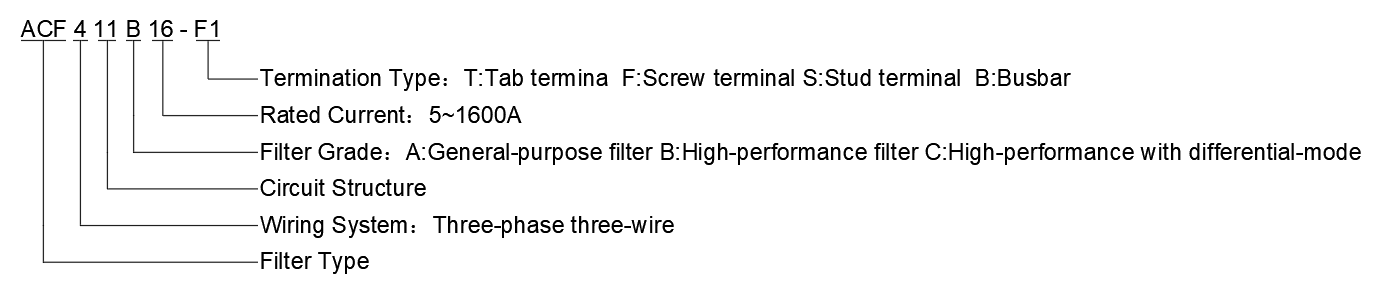

三相四线

Typical Insertion Loss Curve

① General-purpose Three-phase Four-wire Filter

②High-performance Three-phase Four-wire (Filter)

Three-phase Four-wire Product Selection Table

Dimensions of High-performance Three-phase Four-wire Filter

Product Model	Drawing No.	Applicable Power (kW)	Rated Current	Dimension(±2)
				A	B	C	D	H	I	J
ACF411A5-T1		0.75	5	75	86.5	51	/	38	/	4.5
ACF411A10-T1		3-4	10	75	86.5	51	/	38	/	4.5
ACF411A16-T1		5.5	16	75	86.5	51	/	38	/	4.5
ACF411A20-F1		7.5	20	184	202	70	86	58	M4	6.5*9.5
ACF411A36-F1		11-15	36	200	220	95	115	90	M6	6.5*9.5
ACF411A50-F1		18.5-22	50	200	220	95	115	90	M6	6.5*9.5
ACF411A65-F1		30	65	200	220	95	115	90	M6	6.5*9.5
ACF411A80-S1		37	80	243	284	96	180	90	M8	6.5*9.5
ACF411A100-S1		45	100	243	284	96	180	90	M8	6.5*9.5
ACF411A120-S1		55	120	243	284	96	180	90	M8	6.5*9.5
ACF411A150-S1		75	150	243	294	96	180	90	M10	6.5*9.5
ACF411A200-S1		90	200	243	294	96	180	90	M10	6.5*9.5
ACF411A250-B3		110	250	105	315	245	260	128	M8	6.5
ACF411A300-B3		132	300	105	315	245	260	128	M8	6.5
ACF411A400-B3		160-200	400	105	315	245	260	128	M8	6.5
ACF411A600-B3		250-310	600	105	315	245	260	128	M8	6.5
ACF411A900-B3		500	900	165	445	325	340	150	M8	6.5
ACF411A1000-B3		560	1000	165	445	325	340	150	M8	6.5
ACF411A1600-B3		900	1600	245	580	330	350	180	M12	8.5

Dimensions of High-Performance Three-Phase Four-Wire Filter

Product Model	Drawing No.	Applicable Power (kW)	Rated Current	Dimension(±2)
				A	B	C	D	H	I	J
ACF411B5-F1		0.75	5	184	202	70	86	58	M4	6.5*9.5
ACF411B10-F1		3-4	10	184	202	70	86	58	M4	6.5*9.5
ACF411B16-F1		5.5	16	184	202	70	86	58	M4	6.5*9.5
ACF411B20-F1		7.5	20	184	202	70	86	58	M4	6.5*9.5
ACF411B36-F1		11-15	36	243	260	96	125	90	M6	6.5*9.5
ACF411B50-F1		18.5-22	50	243	260	96	125	90	M6	6.5*9.5
ACF411B65-F1		30	65	243	260	96	125	90	M6	6.5*9.5
ACF411B80-S1		37	80	354	384	155	185	90	M8	6.5*9.5
ACF411B100-S1		45	100	354	384	155	185	90	M8	6.5*9.5
ACF411B120-S1		55	120	354	384	155	185	90	M8	6.5*9.5
ACF411B150-S1		75	150	354	394	155	185	90	M10	6.5*9.5
ACF411B200-S1		90	200	354	394	155	185	90	M10	6.5*9.5
ACF411B250-B3		110	250	105	315	245	260	128	M8	6.5
ACF411B300-B3		132	300	105	315	245	260	128	M8	6.5
ACF411B400-B3		160-200	400	105	315	245	260	128	M8	6.5
ACF411B600-B3		250-310	600	105	315	245	260	128	M8	6.5
ACF411B900-B3		500	900	165	445	325	340	150	M8	6.5
ACF411B1000-B3		560	1000	165	445	325	340	150	M8	6.5
ACF411B1600-B3		900	1600	245	580	330	350	180	M12	8.5
