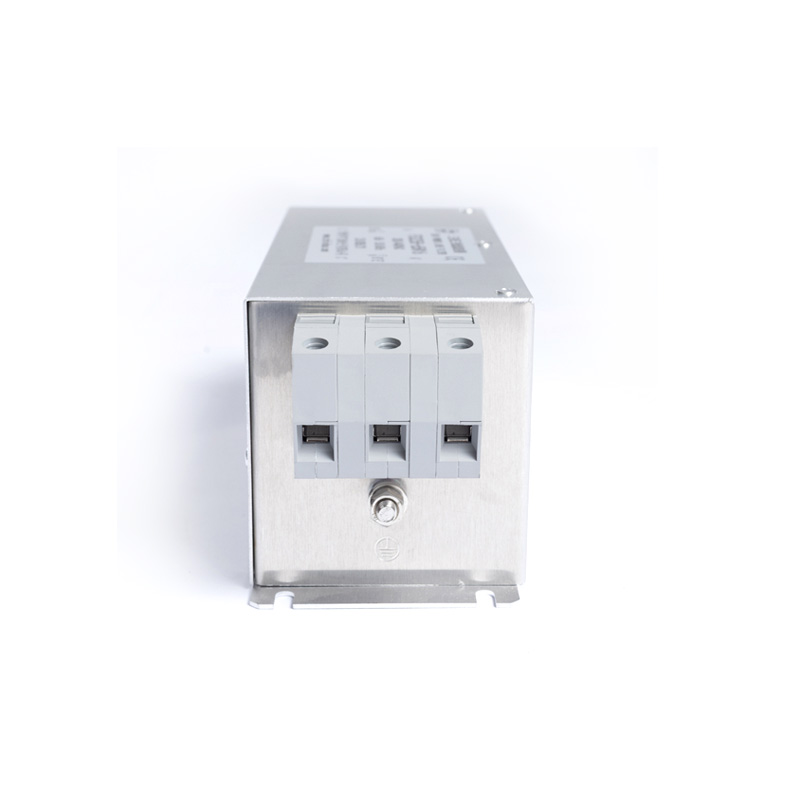

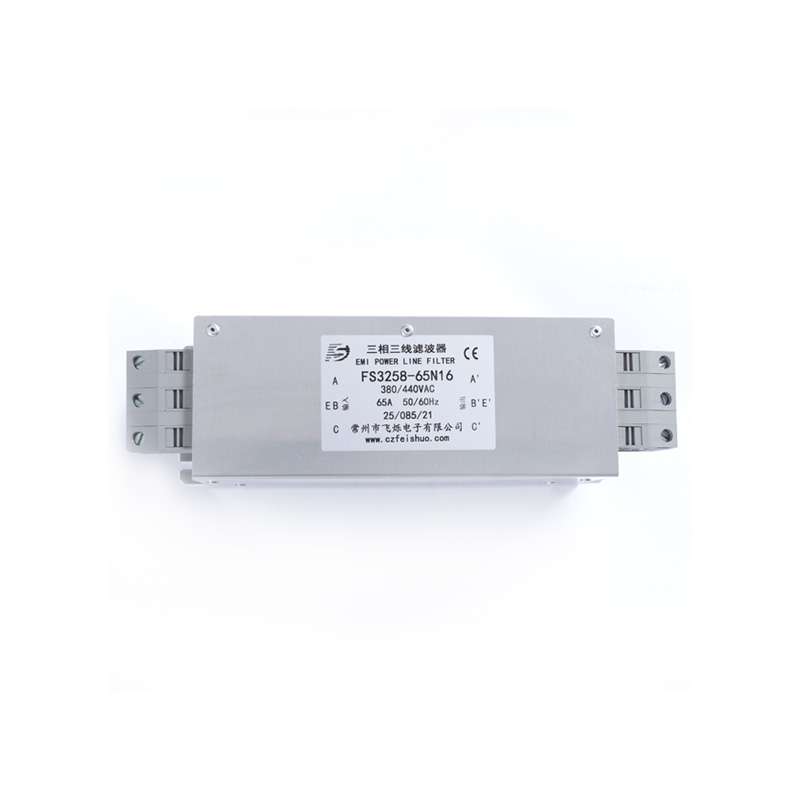

The FS3258 series is a high-efficiency 3-phase filter. Featuring an ultra-compact and slim design, it enables trouble-free installation even in limited mounting spaces. Thanks to its compact footprint and superior performance, the FS3258 series is an idea
Contact usBasic Parameters
① Rated Voltage: 380/440 VAC
② Rated Current: 5A ~ 1600A
③ Operating Frequency: 50/60Hz
④ Climate Class: 25/85/21
⑤ Withstand Voltage: L-L: 1500VDC; L-E: 2500VDC

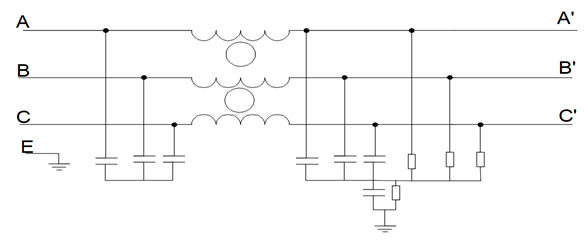

Circuit Structure
Nomenclature Rule

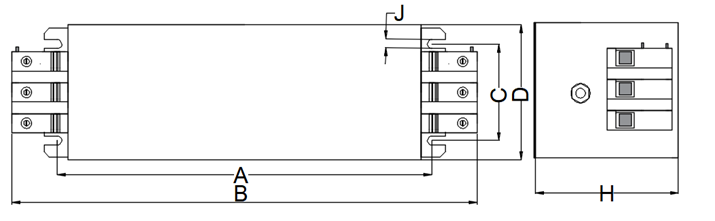

Product Dimensional Drawing
3258 Series Product Selection Table
Product Type | Matching Power (kW) | Rated Current (A) | Dimension(±2) | ||||||
| A | B | C | D | H | J | I | |||
| FS3258-5N4 | 1.5 | 5 | 180 | 190 | 20 | 40 | 75 | 4.5 | M4 |
| FS3258-10N4 | 3.7 | 10 | 180 | 190 | 20 | 40 | 75 | 4.5 | M4 |
| FS3258-20N4 | 7.5 | 20 | 235 | 242 | 25 | 45 | 75 | 5.5 | M4 |
| FS3258-36N10 | 15 | 30 | 255 | 310 | 30 | 50 | 85 | 5.5 | M4 |
| FS3258-50N16 | 18.5-22 | 50 | 235 | 290 | 60 | 85 | 90 | 5.5 | M6 |
| FS3258-65N16 | 30 | 65 | 235 | 290 | 60 | 85 | 90 | 5.5 | M6 |
| FS3258-80N35 | 45 | 80 | 255 | 320 | 60 | 85 | 140 | 6.5 | M8 |
| FS3258-100N35 | 55 | 100 | 255 | 320 | 60 | 85 | 140 | 6.5 | M8 |
| FS3258-130N50 | 55 | 130 | 255 | 338 | 65 | 95 | 150 | 6.5 | M8 |
| FS3258-150N50 | 75 | 150 | 255 | 338 | 65 | 95 | 150 | 6.5 | M8 |
| FS3258-180N95 | 90 | 180 | 365 | 455 | 102 | 120 | 170 | 6.5 | M8 |
| FS3258-200N95 | 110 | 200 | 365 | 455 | 102 | 120 | 170 | 6.5 | M8 |
