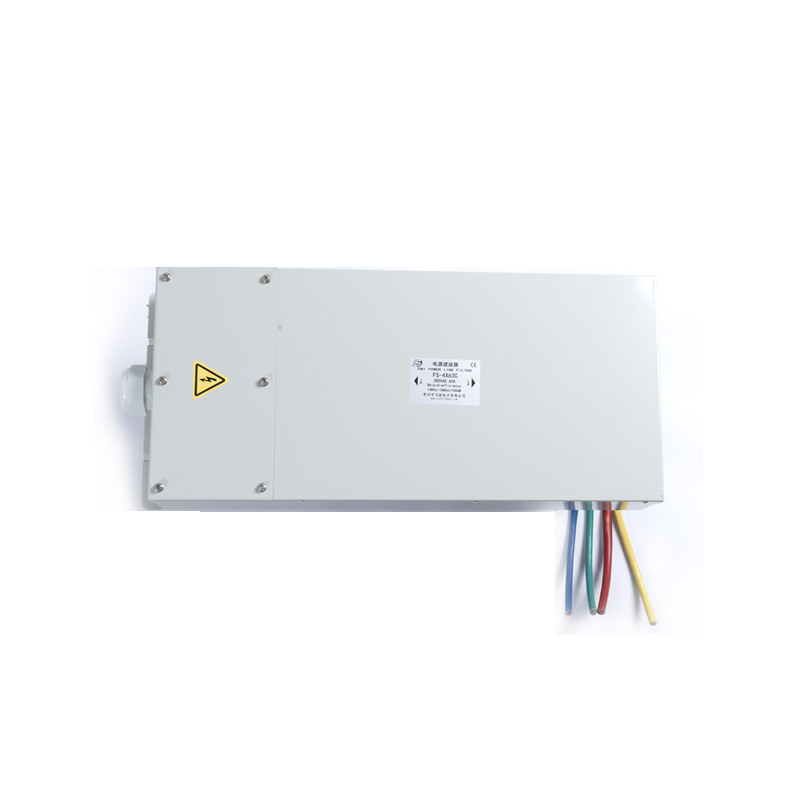

FS-4X63C

Product Introduction

Shielding filters are widely applied for interference suppression in shielded rooms, anechoic chambers, shielding boxes, cabinets and communication equipment.

All products are tested in accordance with GJB1518A-2015 General Specification for Radio Frequency Interference Filters. Our Class C power and signal filters achieve signal isolation above 100 dB across the frequency range of 10 kHz to 40 GHz, making them ideal for shielded rooms and anechoic chambers.

Basic Parameters

    ①Rated Voltage: Single-phase: 110/250 VAC

    ②Ground wire / 3-phase 5-wire: 380/440 VAC

    ③Operating Frequency: 0 ~ 60 Hz

    ④Climatic Category: 25/85/21

    ⑤Withstand Voltage: Line to Line (L-L): 1500 VDC; Line to Earth (L-E): 1500 VDC

    ⑥Shielding Effectiveness:

        Class B: ≥ 100 dB (150 kHz ~ 10 GHz)

        Class C: ≥ 100 dB (14 kHz ~ 18 GHz)

    ⑦Classification by Wiring System:

        Ground wire filter: Single ground wire

        Single-phase AC: Live wire, Neutral wire, Earth wire

        Single-phase DC: DC positive, DC negative

        3-phase 5-wire: Phase A, Phase B, Phase C, Neutral wire (N), Earth wire (E)

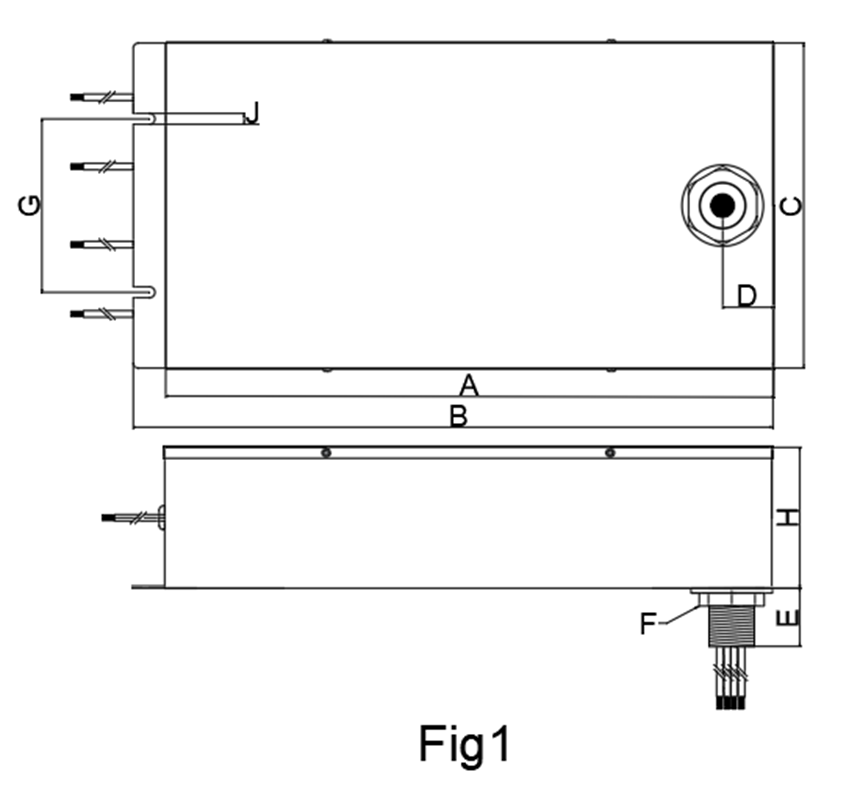

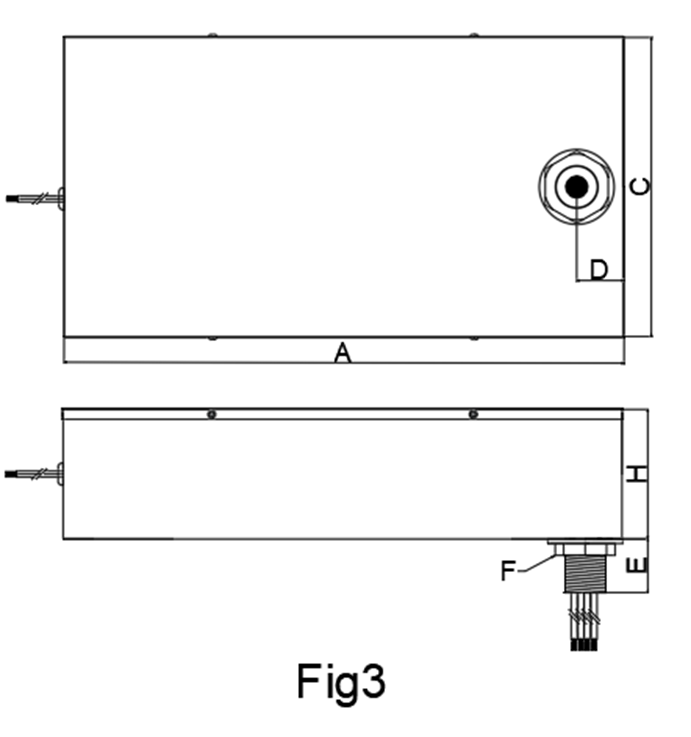

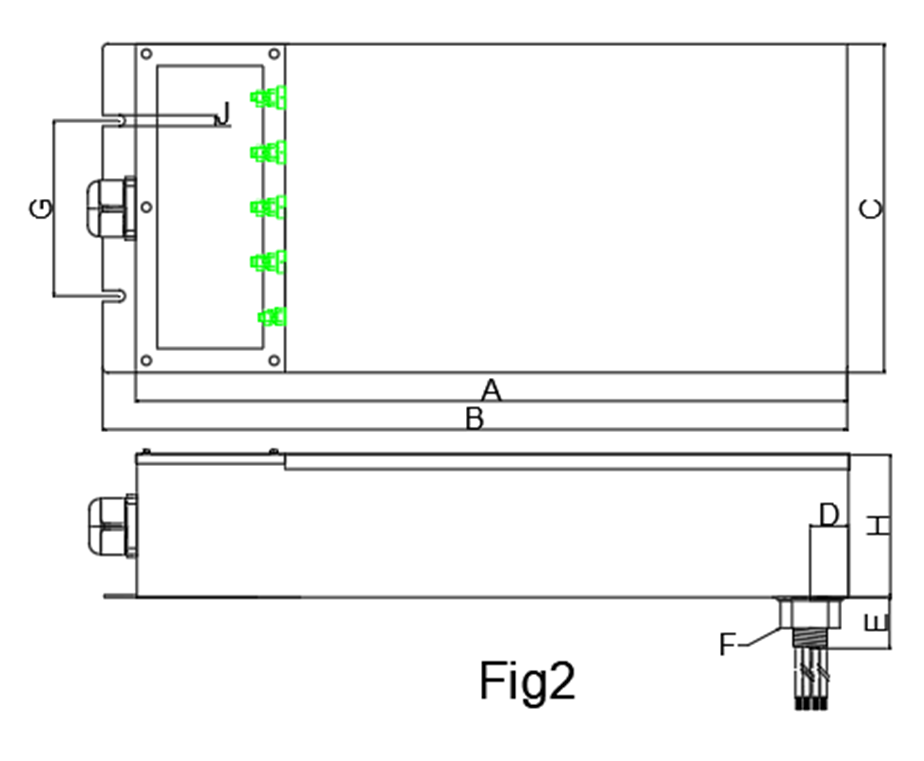

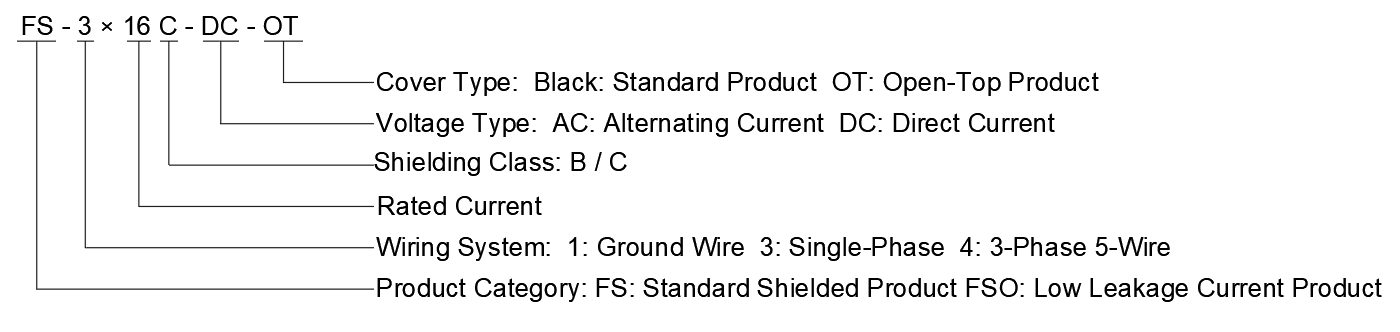

Naming Rules
