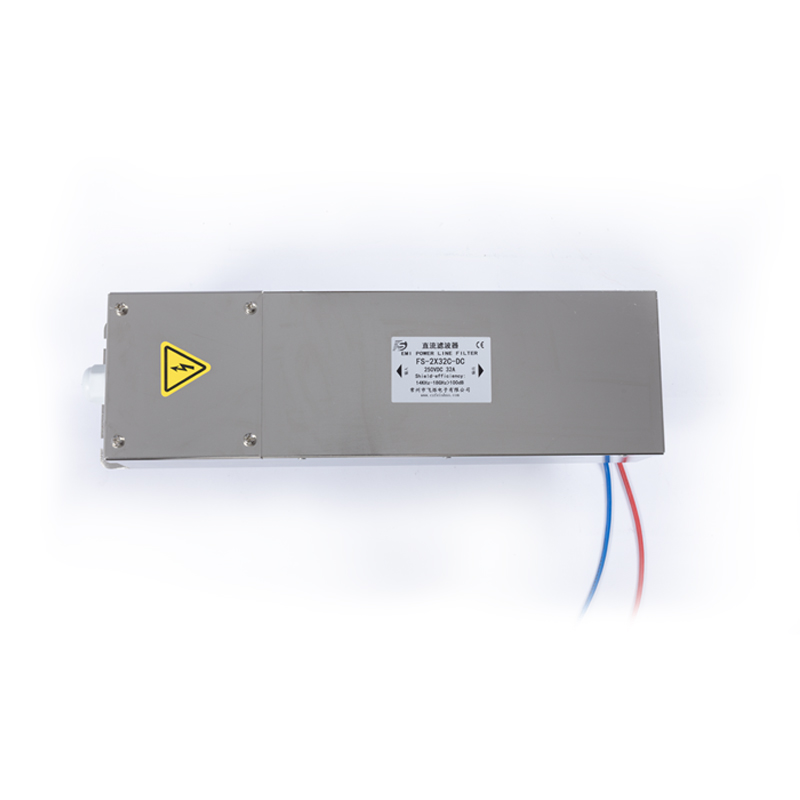

FS-2X32C-DC

Product Introduction

Shielding filters are extensively used for signal filtering in shielded rooms, anechoic chambers, shielding boxes, cabinets and communication equipment.

All products are tested in accordance with GJB1518A-2015 General Specification for Radio Frequency Interference Filters. Our C-class power and signal filters deliver a signal isolation of over 100 dB across the frequency band from 10 kHz to 40 GHz, making them well-suited for shielded rooms and anechoic chambers.

Technical Parameters

• Rated Voltage: 500 VDC; Operating Frequency: DC

• Rated Current: Refer to the selection table

• Number of Lines: 2

• Withstand Voltage Test: 1200 Vdc for 2 seconds

• Climatic Category: 25/085/21

• Insertion Loss: 14 kHz ~ 40 GHz

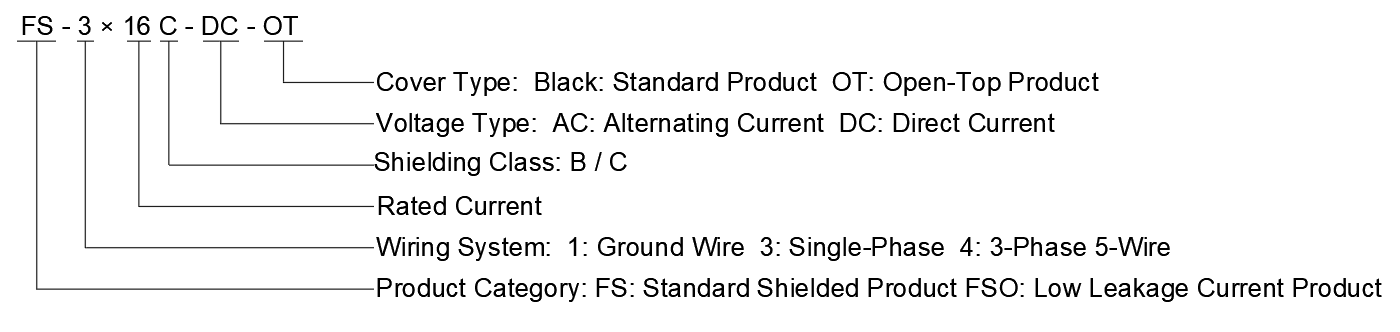

Product identification
