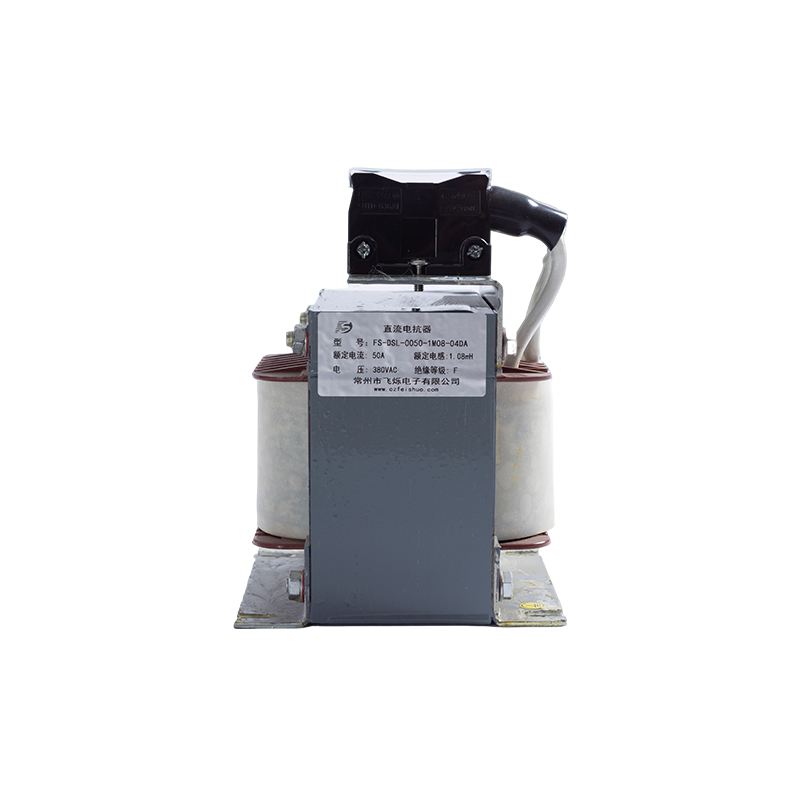

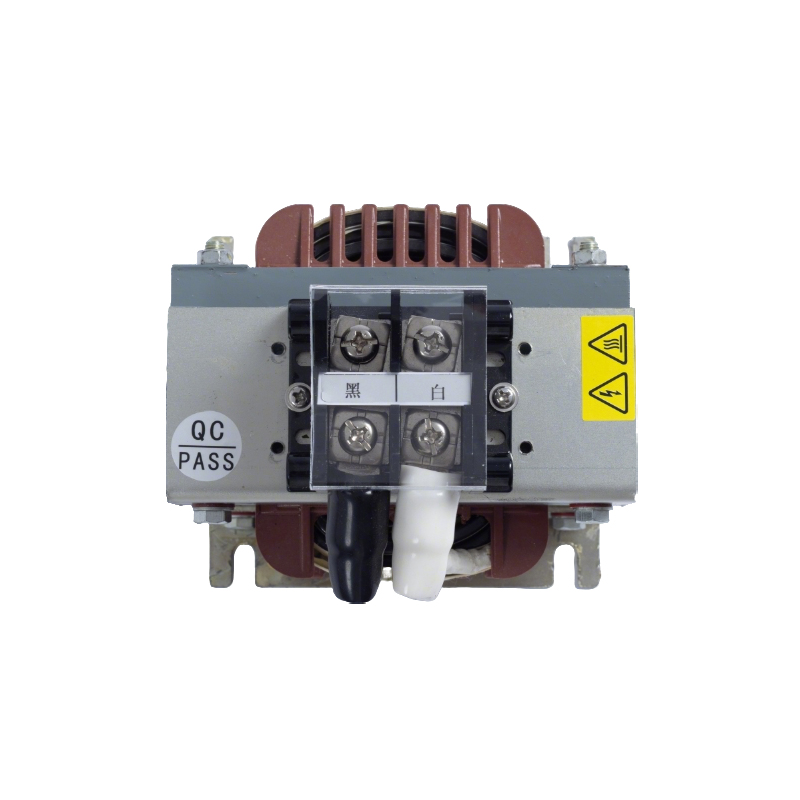

FS-DSL-0050-1M08-04DA

Product Appllcation

    1. Improve the input current waveform caused by capacitive filtering.

    2. Reduce and prevent rectifier bridge damage and capacitor overheating caused by impulse current.

    3. Improve the power factor and reduce the DC bus AC pulse.

    4. Limit the devariation of power grid voltage.

    5. Together with the capacitor connected in parallel, the ripple in the DC is suppressed or filtered to eliminate the adverse effect on the negative cut.5.Work with capactor to suppress or filter the current rlpple for eliminating .negative influenceOnload

TechnicalSpocifications

    1. Working voltage :220VAC-1140VAC

    2. Working frequency :50/60Hz.

    3. Working current :3A-1600A

    4. Insulation class :class F.H

    5. Use environment :-10--+45℃, the rating will not be reduced. Up to +55℃ above 45℃, each increase of 1℃, the rated current is reduced by 2%

    6. Protection class :IP00-P22

    7. Maximum current :1.5x rated current, lasting 60S

    8. Noise :<65dB

    9. Temperature rise :<85K

    10. Electrical strength: Core - winding 3000VAC/50Hz/5mA/105 no flare breakdown (factory test)

    11. Insulation resistance :1000VDC insulation resistance >100MΩ

    12. No more than 2000 meters above sea level.

    13. Operating environment temperature -25℃~+45℃, relative humidity does not exceed 90%.

    14. There are no harmful gases around, no inflammable and explosive materials.

    15. the surrounding environment should have good ventilation conditions, such as installed in the cabinet, ventilation equipment should be installed.

Applicable standards

    IEC289:1987 Reactor

    GB10229-88 Reactor(eqvIEC289:1987)

    JB9644-1999 Reactors used for semiconductor electrical driving

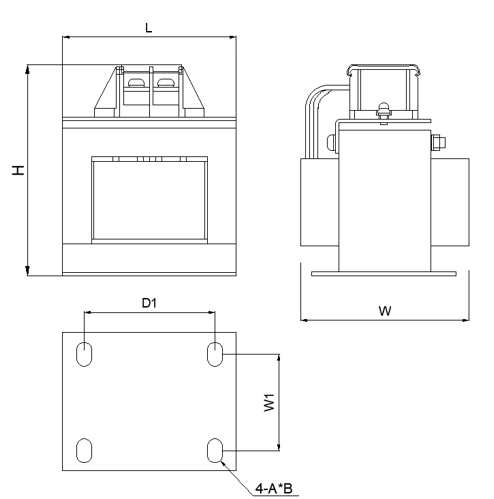

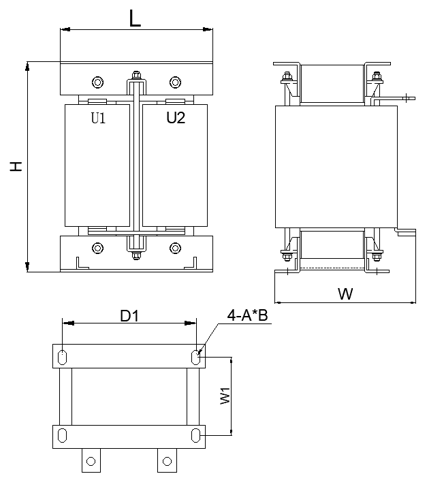

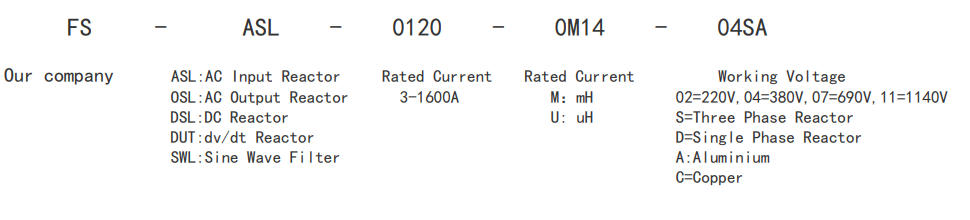

Product identification
