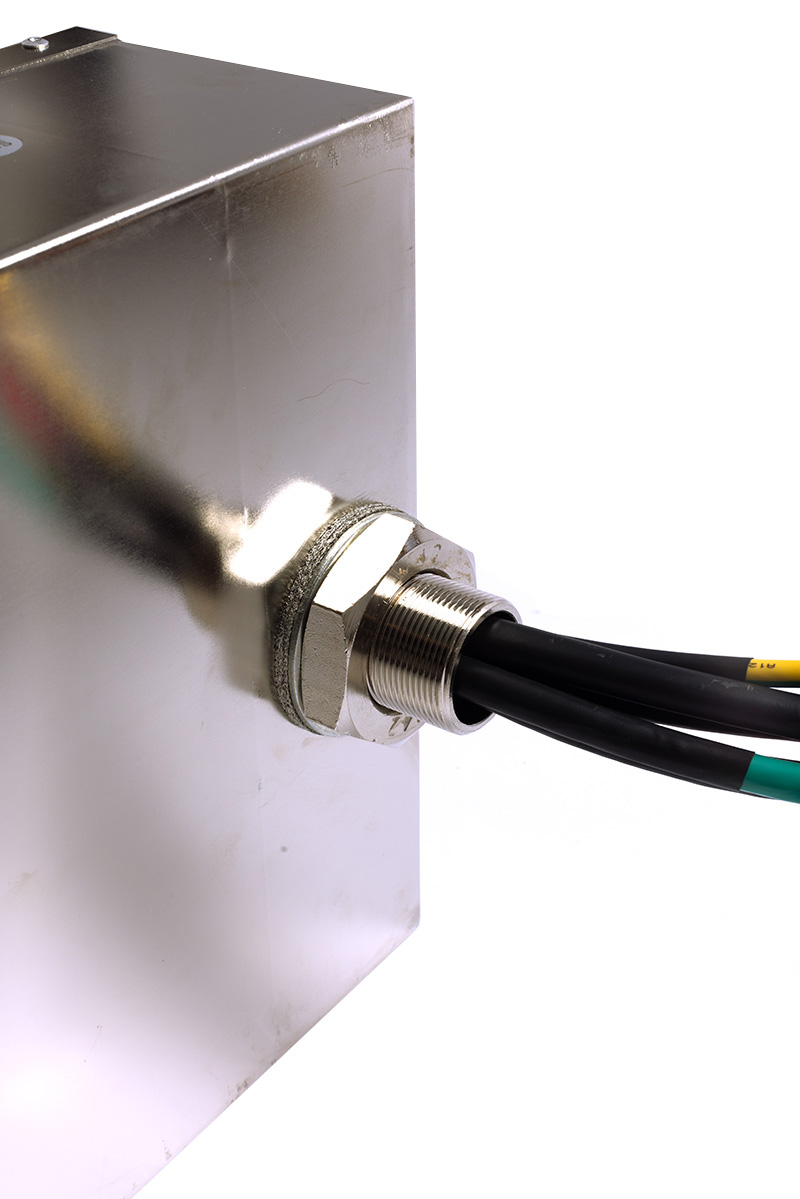

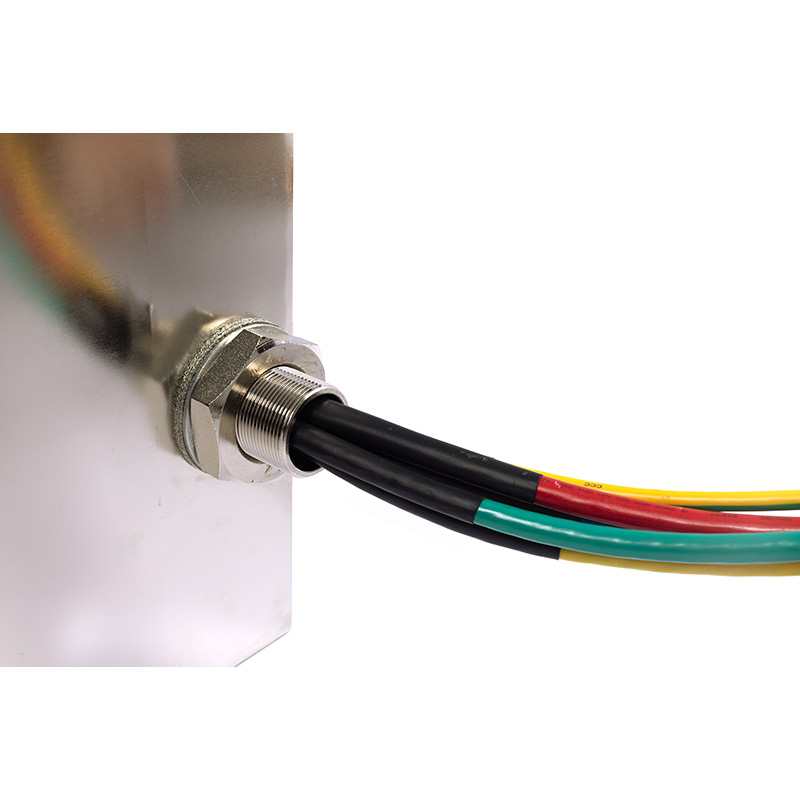

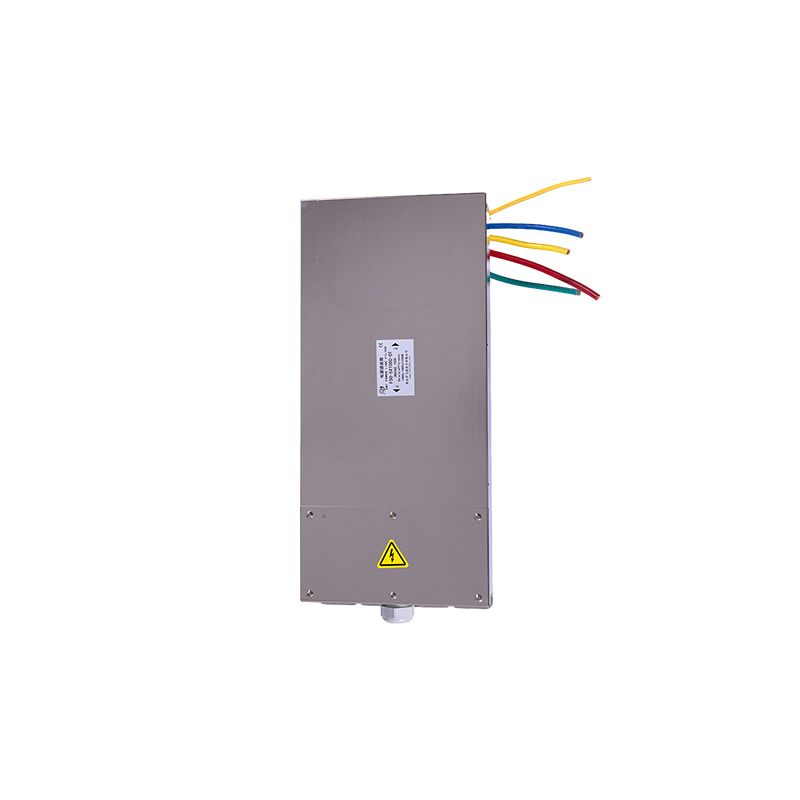

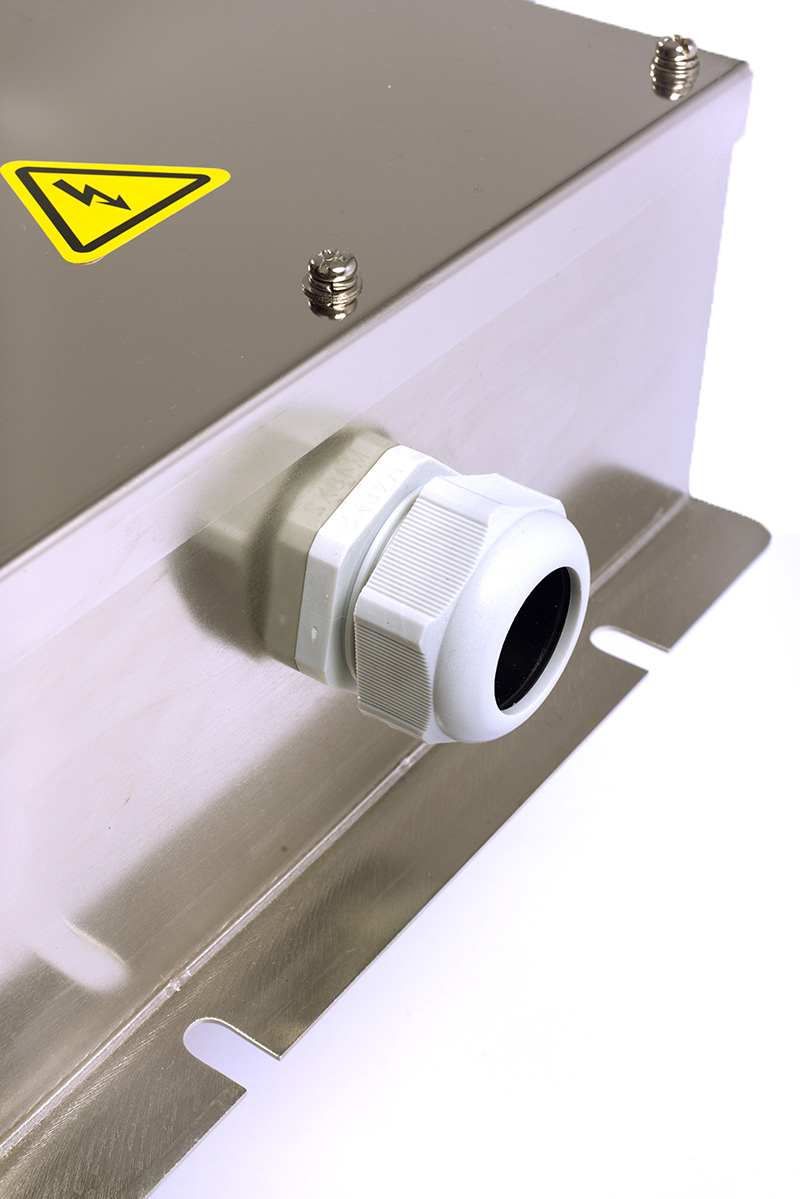

FSO-5X100C-OT

Product Introduction

Low-leakage filters for shielded rooms are widely used for filtering in shielded rooms, anechoic chambers, shielding boxes, cabinets and communication equipment.

All products are tested in compliance with GJB1518A-2015 General Specification for Radio Frequency Interference Filters. Our series includes various power and signal filters of Class C shielding grade, which achieve a signal isolation of over 100 dB within the frequency range of 10 kHz to 40 GHz, perfectly suited for anechoic chambers and shielded rooms.

Basic Parameters

1.Rated Voltage: Single-phase: 110/250 VAC

2.Ground wire / 5-wire 3-phase: 380/440 VAC

3.Operating Frequency: 0 ~ 60 Hz

4.Climatic Category: 25/85/21

5.Withstand Voltage: Line to Line: 1500 VDC; Line to Earth: 1500 VDC

6.Shielding Effectiveness:

        Class B: ≥100 dB (150 kHz ~ 10 GHz)

        Class C: ≥100 dB (14 kHz ~ 18 GHz)

7.Classification by Wiring System:

    Ground wire filter: Single ground wire only

    Single-phase AC: Live wire, Neutral wire, Earth wire

    Single-phase DC: DC positive, DC negative

    5-wire 3-phase: Phase A, Phase B, Phase C, Neutral wire, Earth wire

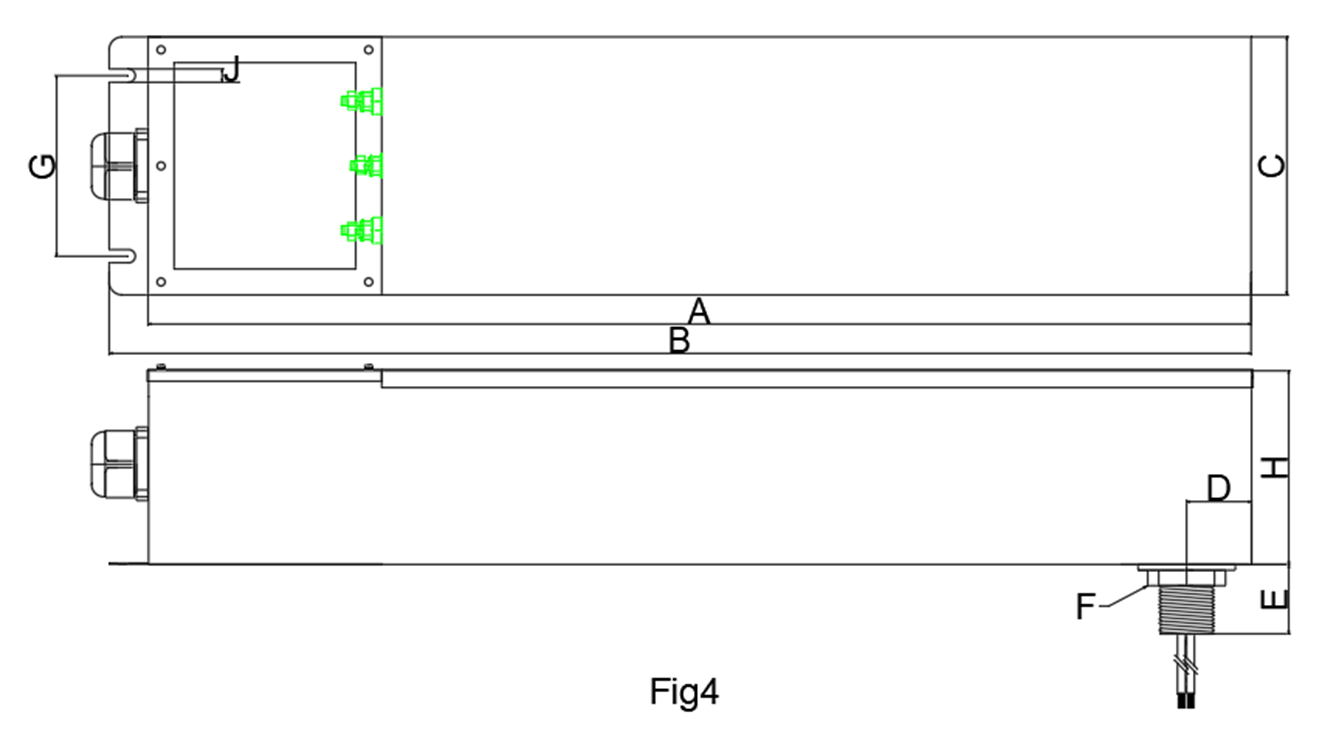

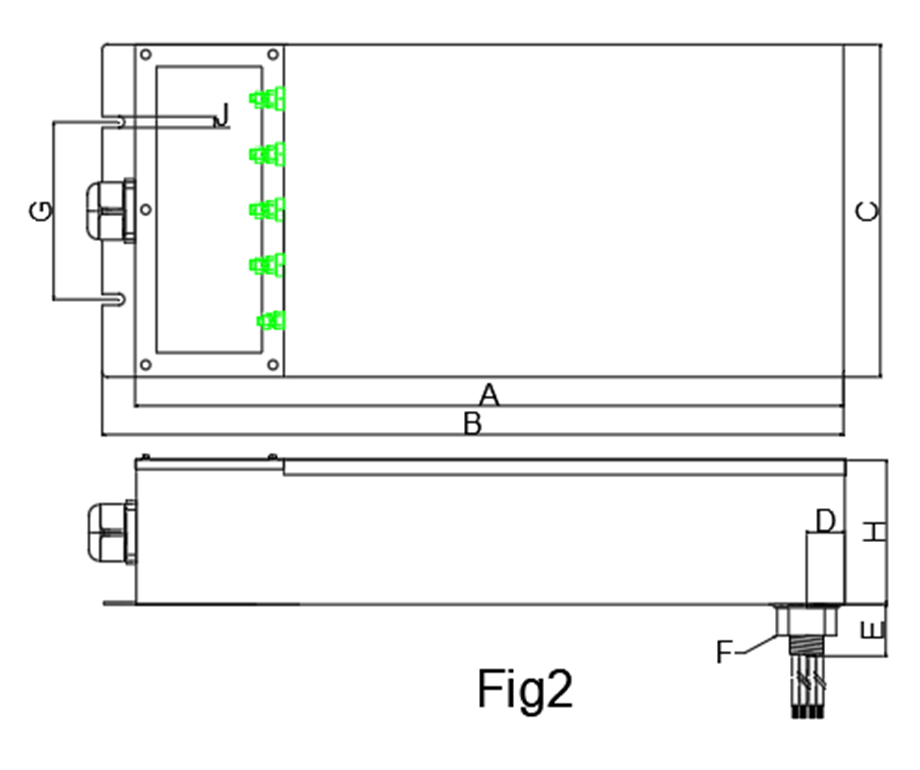

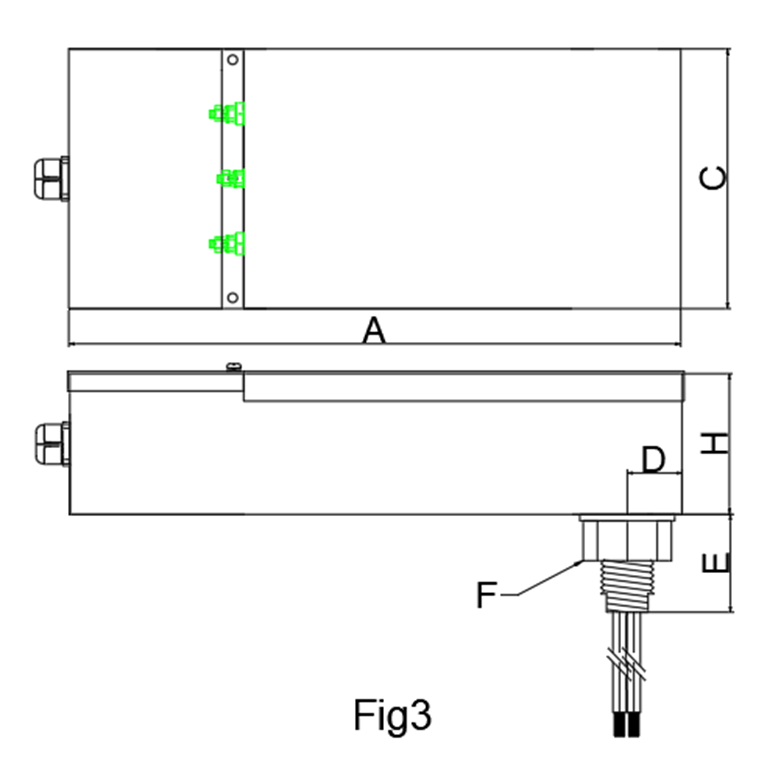

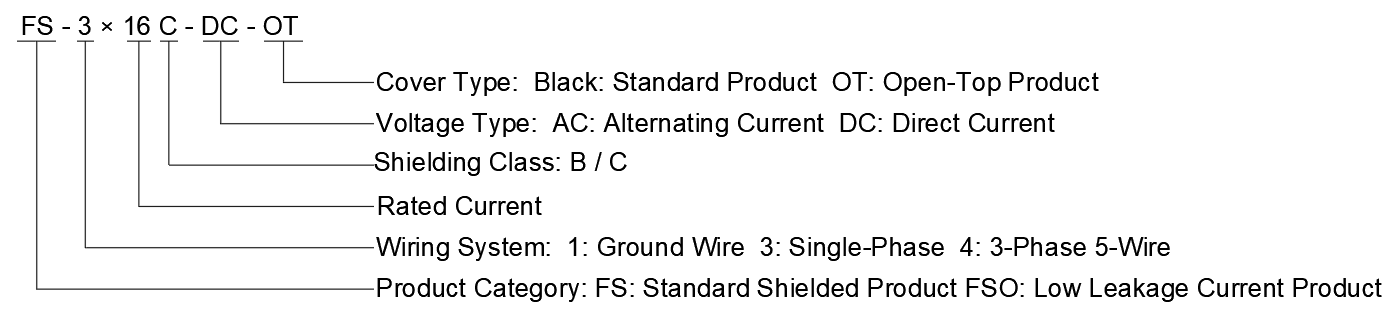

Naming Rules
