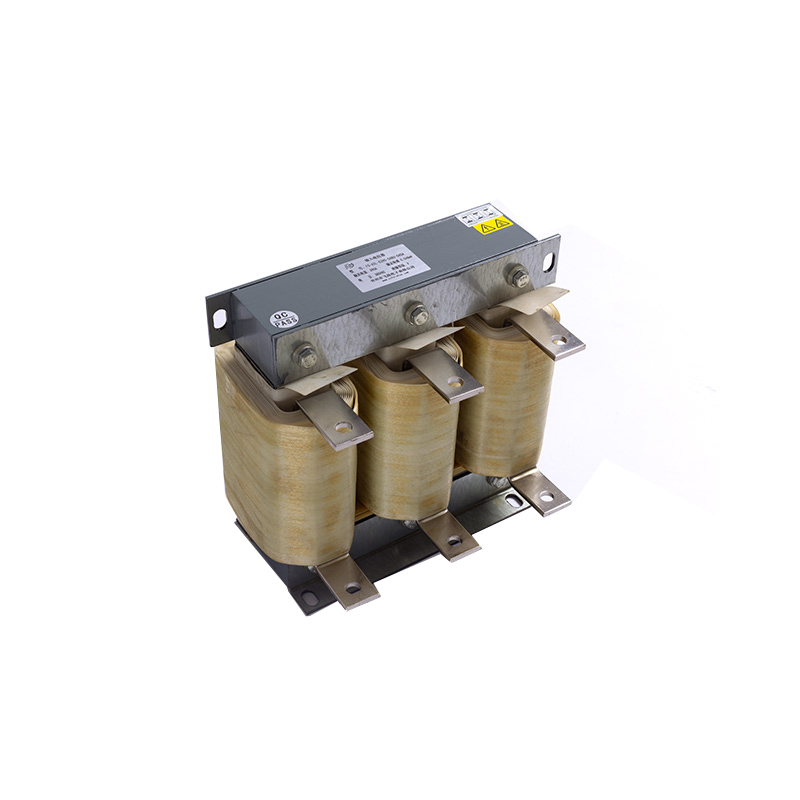

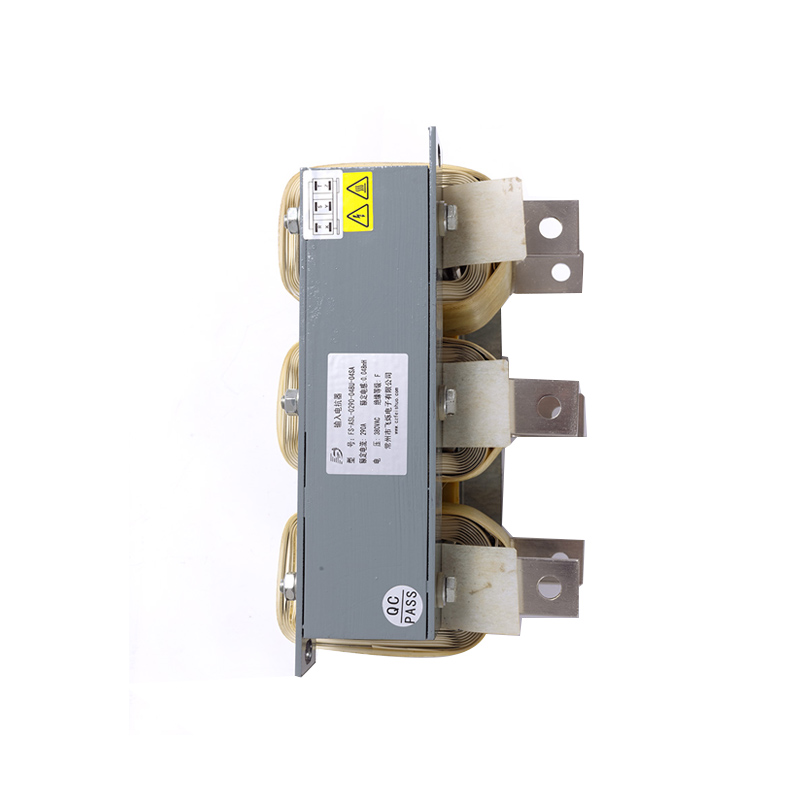

FS-ASL-0290-048U-04SA

Product Application

    In particular, in-line reactors are recommended in the following environments

    1.Several frequency converters are connected closely in parallel

    2.The line power supply has obvious disturbance (interference, overvoltage) from other equipment.

    3.There is a voltage imbalance between the phases of the line power supply, exceeding 1.8% of the rated voltage

    4.A large number of frequency converters are installed on the same line

    5.Reduce the overload on the cos correction capacitor if the device contains a power coefficient correction device

Technical Specifications

Use environment :-10~+45 ℃, the rating will not be reduced. The maximum is +55 ° C, and the rated current is reduced by 2% for every 1 ° C increase above 45 ° C, and the altitude does not exceed 2000 meters. The operating temperature ranges from -25 ° C to +45 ° C, and the relative humidity does not exceed 90%. Zhoutian no harmful gas, no inflammable and explosive materials.

The surrounding environment should have good wind conditions, such as installed in the cabinet, ventilation equipment should be installed.

Applicable standards

    IEC289:1987 Reactor

    GB10229-88 Reactor(eqvIEC289:1987)

    JB9644-1999 Reactors used for semiconductor electrical driving

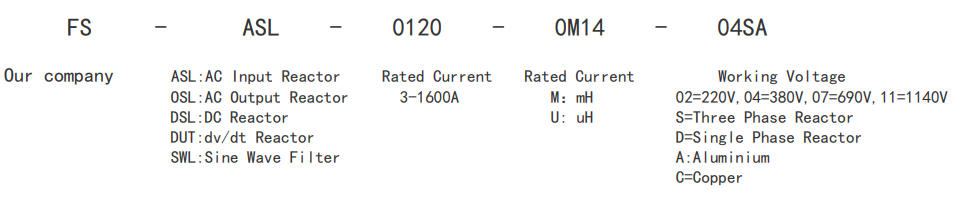

Product identification
