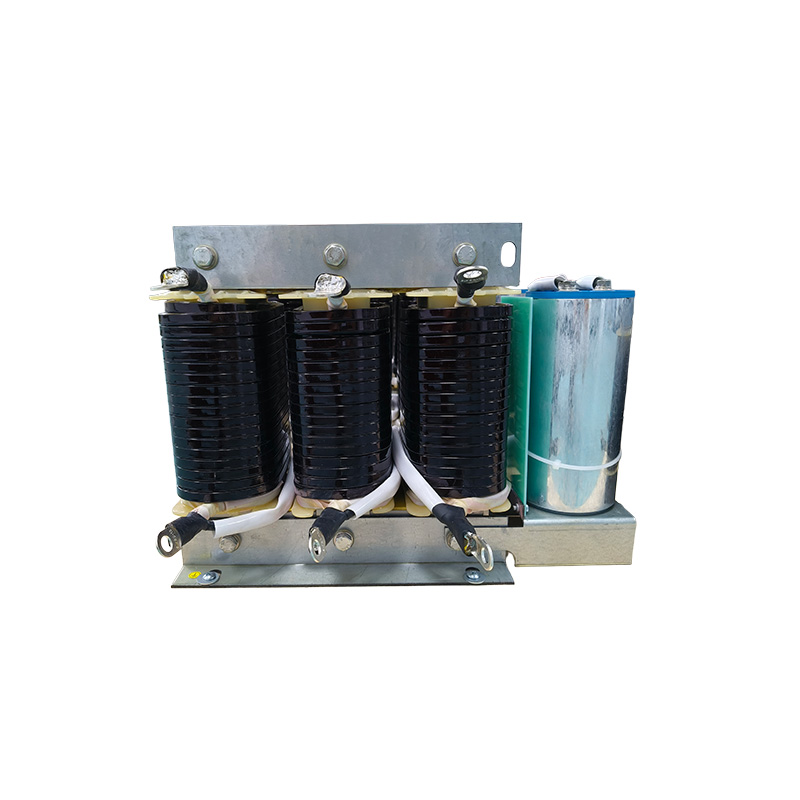

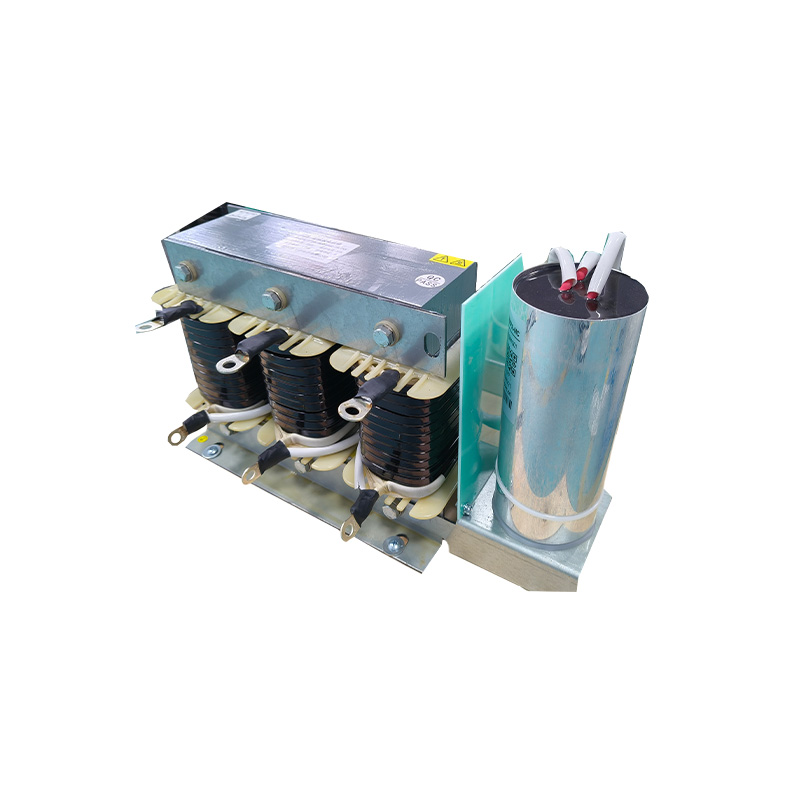

FS-SWL-0060-1M00-04SA

Product Profile

Sinus Filter is designed to convert the PWM output signal of motor drives into a smooth sine wave with low residual ripple so as to avoid the motor insulation damage,reduce the resonance phenomenon caused by the distributed capacitance and inductance due to the long cable, eliminate the excessive motor voltage caused by high dv/dt,eliminate motor damage caused by eddy loss and reduce the noise of motor by filter application.

Product Features

Due to the excellent foil winding structure and aluminum leading structure, Sinus Filter is characterized by small DC resistance, strong resistance to electromagnetic interference and strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating conditions;high insulation ability can sustain high Dv/dt voltage impulse to the reactor; process makes the humming noise low.

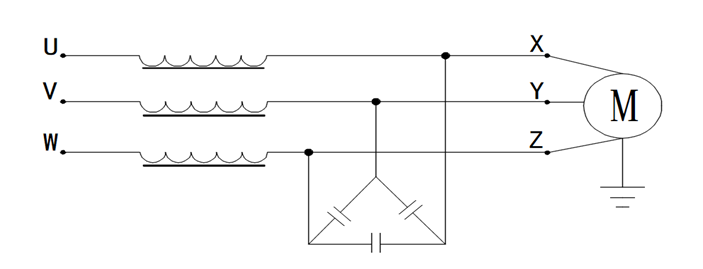

Electrical Diagram

Technical parameter

1.Work Voltage:220VAC-690VAC

2.Work Current:15A-1500A

3.Work Frequency: 50/60Hz

4.Swltching frequency:2-8KHz

5.Insulation Class: class  H

6.Rated voltage drop:8~12%

7.Voltage harmonic distortion：THDU≤5%

8.Load current≤8%

9.Operation Environment:-10~+45 C,rated value wont’t lower,when higer than 55 ℃and every lc,the current will step down 2%

10.Protectlon class:IP00-lP22

11.Max Current: 1.5 xRated current,continuous 60S

12.Noise:≤ 65dB

13.Temperature Rise:75K

14.Dlelectric strength: Core Col 3000VAC/50Hz/5mA/10s no electric arcing puncture (factory test)

16.Under seal level 2000m

17.Running  temperature 25 ℃-+150 ℃,comparative malsfure not over 90%.

18.With well-ventilated condition,ventilation devices shall be mounfed if installatioh in panels

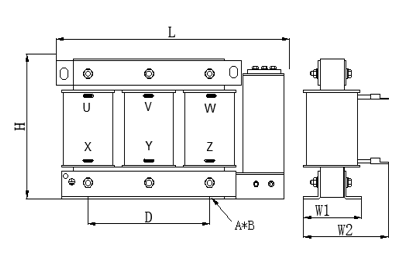

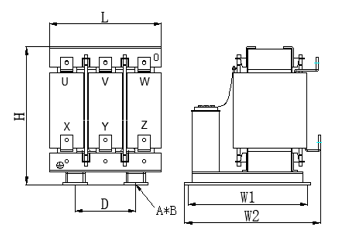

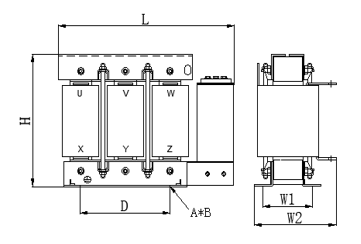

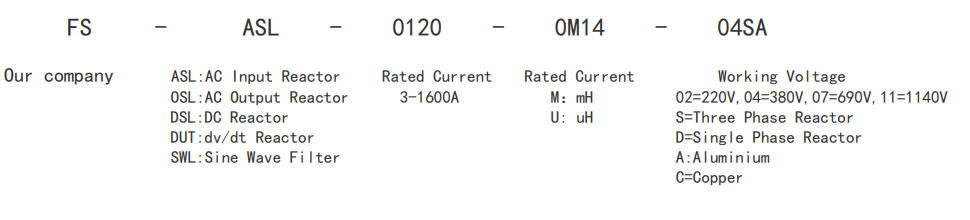

Product identification
