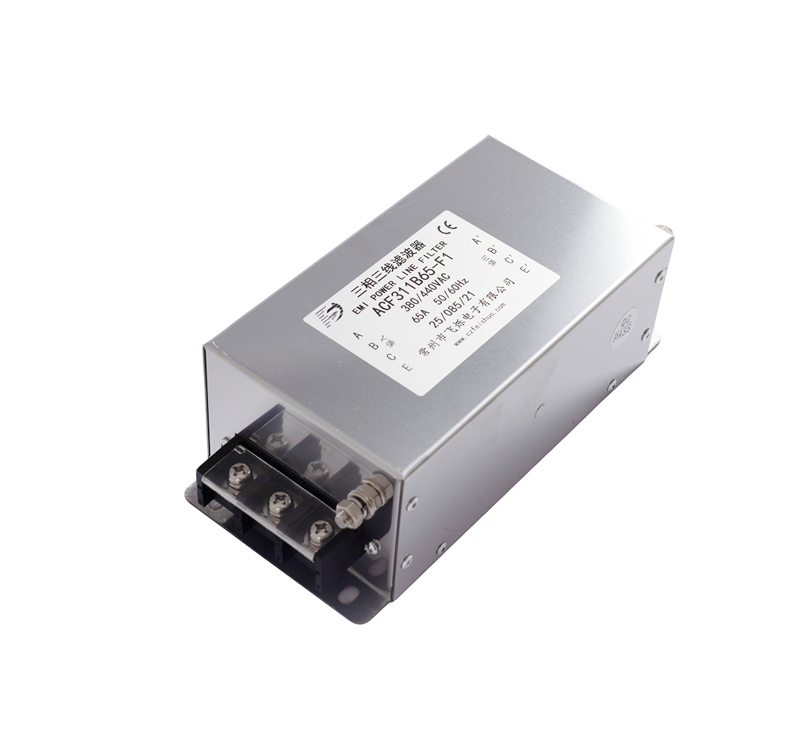

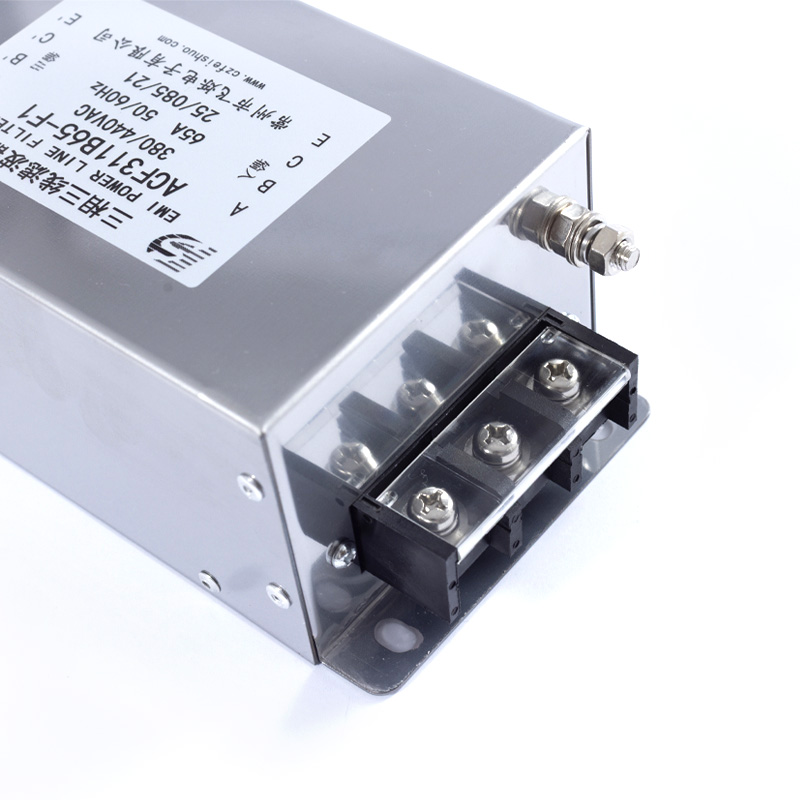

ACF311B65-F1

Product Description

The three-phase input filter is composed of passive components L, C and R, equipped with common-mode and differential-mode attenuation networks. Designed according to the frequency-domain characteristics of interference generated by the frequency converter at its input side to the power grid and other equipment during operation, it ensures the normal operation of electronic devices around the frequency converter and solves major defects of frequency converters. Installed between the power grid and the frequency converter, this bidirectional filter effectively suppresses electromagnetic interference: it blocks interference from the grid to the converter, and also prevents the converter from disturbing other equipment on the grid.

Product Features

①Terminal connection design for easy wiring; terminals are protected for high safety and reliability.

②Diverse product types with multiple performance grades for selection.

③Excellent insertion loss performance within the frequency range of 10kHz ~ 30MHz.

④Improve the overall reliability and stability of the power grid.

⑤Various size options, suitable for installation in confined spaces.

⑥Complete specifications covering 0.5kW ~ 800kW; custom filters are available for power above 800kW.

Basic Parameters

①Rated Voltage: 380/440VAC

②Operating Frequency: 50/60Hz

③Climate Class: 25/85/21

④Withstand Voltage: L-N: 1500VDC / L-E: 2250VDC

⑤Rated Current: 5~1600A

⑥Design Standards: GB 15288, GB 15287-2008, UL1283, IEC/EN 60939

Typical Applications

Energy storage, semiconductors, UPS, switching power supplies, communication equipment, servo motors, frequency converters, variable frequency power supplies, automatic electronic equipment, three-phase motors, wind power and solar inverter systems, inverters, air conditioners, water cooling systems, elevators, power supply systems and injection molding machines.

Circuit Structure Drawing

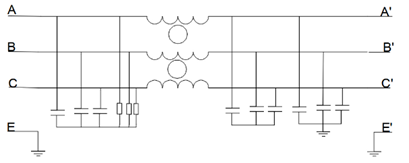

General Type: First-order Filter Circuit

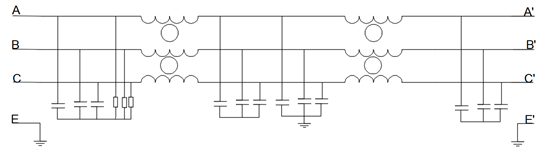

Three-phase Three-wire High-performance Type (Second-order filter with excellent EMI suppression capability)

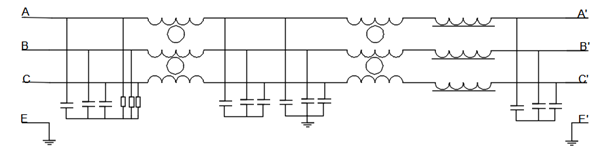

Three-phase Three-wire High-performance Differential Mode Filter (Third-order filter, differential mode design delivers substantial improvement in filtering performance)

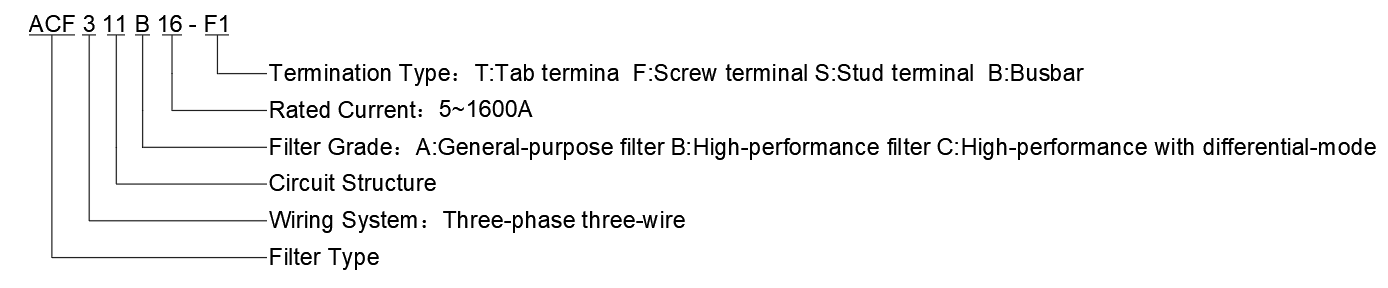

Naming Convention for Three-phase Three-wire Filters

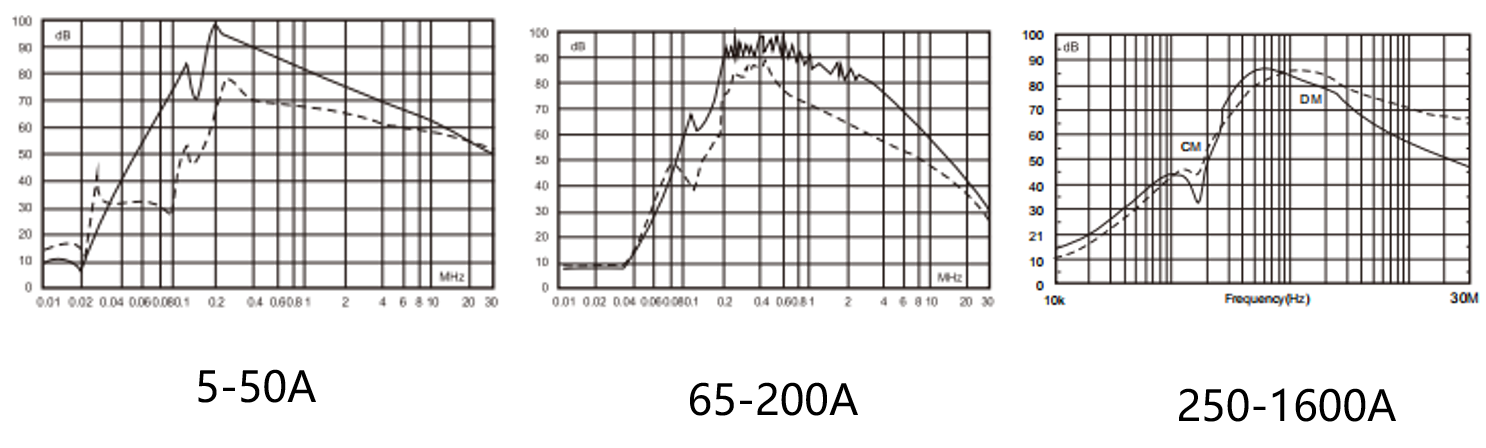

Typical Insertion Loss Curve

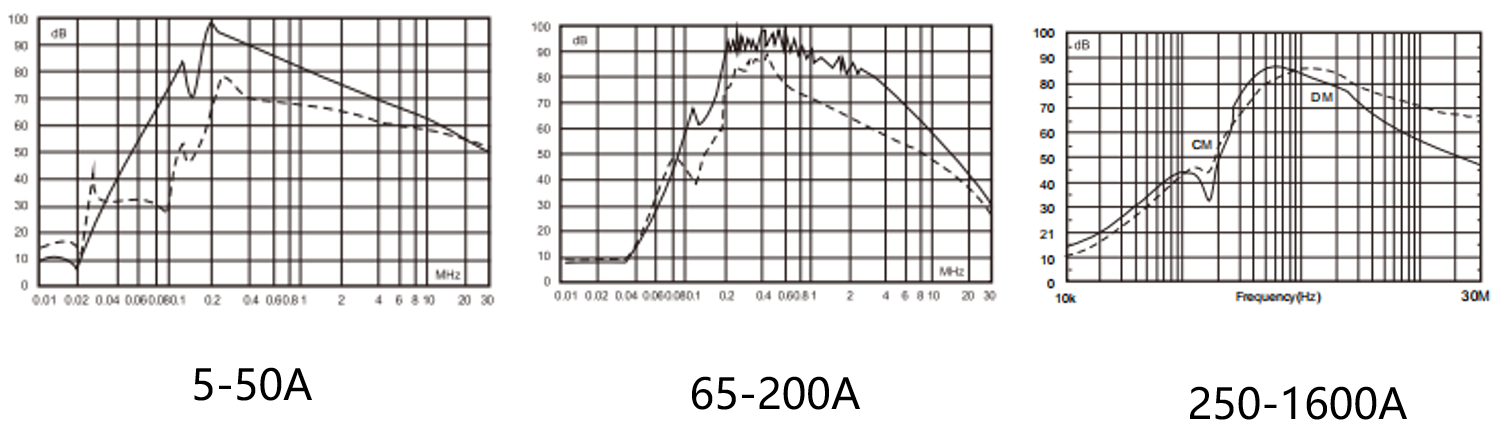

① High-performance Three-phase Three-wire Filter

②High-performance Three-phase Three-wire Filter with Differential Mode

网对变频器的电磁干扰，滤波器是双向滤波器，既可以滤除电网对变频器的干扰，也可以滤除变频器对电网中其它设备的干扰。

产品特点

①采用端子接线方式，接线方便，端子有防护，安全可靠

②产品多样性，性能有多种等级可供选择

③在10KHz~30MHz频段有良好的插入损耗表现

④提高整体电网的可靠性和稳定性

⑤多种体积规格可供选择，可应对于极限空间安装

⑥规格多样，0.5KW~800KW可供选择 800KW以上可定制专用滤波器

基础参数

①额定电压：380/440VAC

②工作频率：50/60Hz

③气候类型：25/85/21

④耐电压：L-N：1500VDC/L-E：2250VDC

⑤额定电流 ：5~1600A

⑥设计依据：GB 15288/GB15287-2008、UL1283、IEC/EN 60939

典型应用

储能、半导体、UPS、开关电源、通讯设备、伺服电机、变频器、变频电源、自动化电子设备、

三相电机、风能、太阳能逆变系统、逆变器、空调、水冷、电梯、电力供应、注塑机

电路结构图

通用型：一阶滤波器电路

三相三线高性能（二阶滤波，具有优越的抑制电磁干扰能力）

三相三线高性能带差模滤波器（三阶滤波，差模对滤波性能有质的提升）

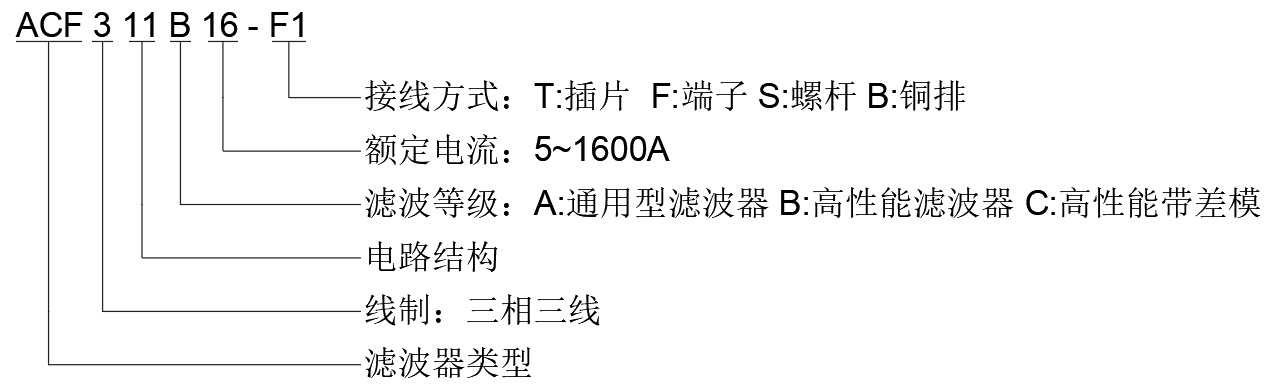

三相三线滤波器命名规则

典型插入损耗图

①三相三线高性能

②三相三线高性能带差模
